Equipment and Facilities Catalogue

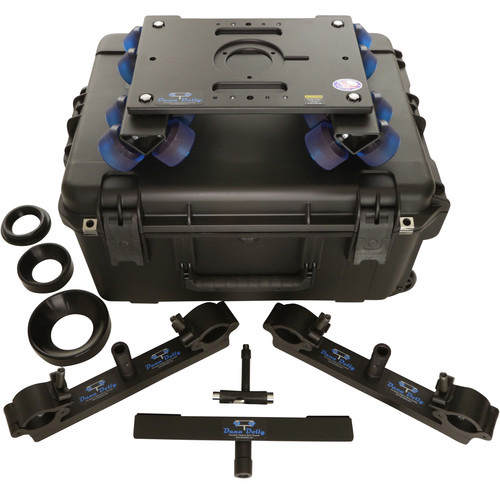

Dana Dolly w/ Stands – Pipe Not Included

Dana Dolly w/ Stands - Pipe Not Included Dana Dolly w/ Stands - Pipe Not Included
The Dana Dolly Portable Dolly System Rental Kit with universal track ends is a heavy-duty camera dolly platform that rides on 16 custom-modified soft polyurethane wheels that resist flat spotting and use ABEC-7-rated precision bearings providing you with extremely smooth dolly shots. This kit is complete with 75, 100, and 150mm bowl adapters, and comes in a custom flight case. The wheel trucks swivel, allowing the dolly to ride on available straight or curved tracks, which you must source separately. Includes two universal track ends, which accept inch and a quarter pipe (standard speed rail) up to 1.9" O.D., and fit into available standard Junior stand receivers or 5/8" baby pins. A center support is included for long track runs or when using heavy cameras.

The dolly platform is machined from aluminum and features a standard Mitchell mount including a 2.75" center hole with a machined key way. The platform incorporates one 3/8" through hole, one 1/4"-20 threaded hole, and one 3/8"-16 threaded hole on each side of the dolly platform for a total of 6 accessory mounting holes.

Kit does not include pipe. Will accept any size pipe or tube from just under 1 1/4″ (1.66 O.D.) to just over 1 1/2″ (1.90 O.D.)



Package includes:

2x “Universal” Style Track Ends
1x 100mm Bowl Adapter
1x 150mm Bowl Adaptor
4x 750 pin screws
1x 75mm Bowl Adapter
1x Center Support for 750 Pin
1x Dana Dolly
1x Dana Dolly Custom Case
1x Laminate Packing List
1x Laminate Packing List
1x Laminate Packing List
6x Rubber ends for stands
2x SHAPE low boy stands
1x Tool w 1/4″ phillips-head screwdriver
1x Washer

Rates:

Per day: $65
Per week: $260
