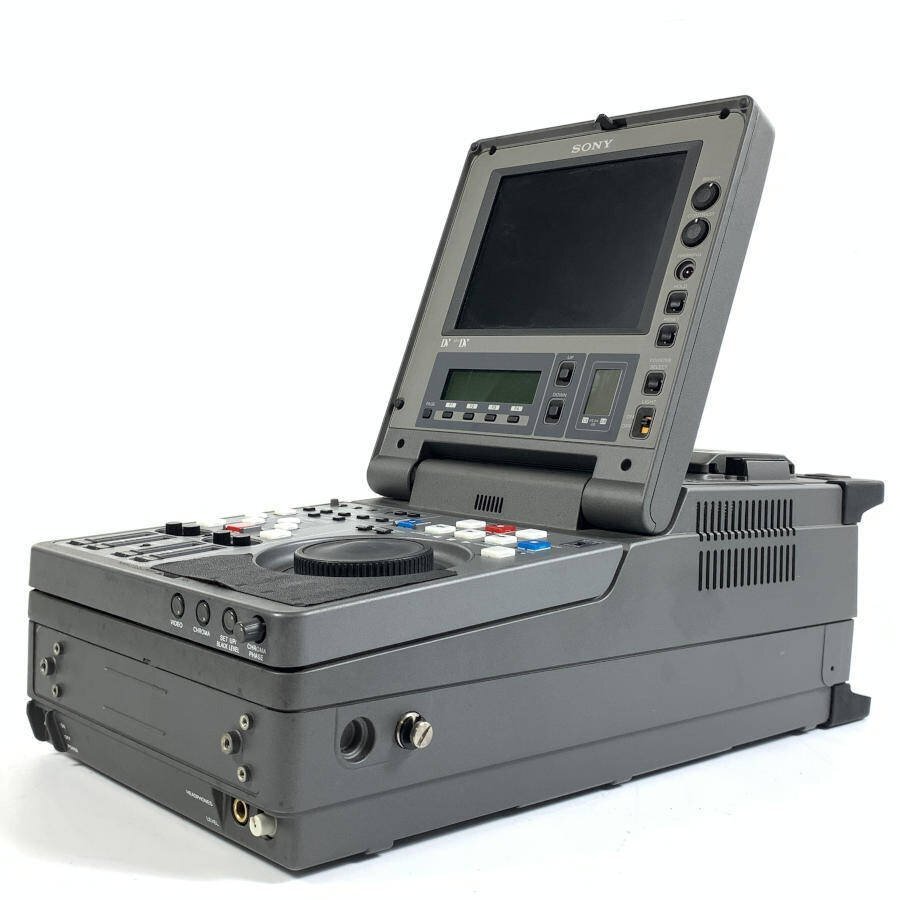

Sony DSR-70 MiniDV Editor / Recorder

Sony DSR-70 MiniDV Editor / Recorder Sony DSR-70 MiniDV Editor / Recorder Sony DSR-70 MiniDV Editor / Recorder
All-in-one Package with a Compact Body The Sony DSR-70 is a portable editing recorder that takes MiniDV tapes. This All-in-one Package includes a 6.4-inch LCD Monitor, Audio Speaker, Jog/Shuttle Dial and Edit Function Keys for viewing and working with MiniDV tapes. The DSR-70 offers a number of inputs and outputs that allow for uses such as putting footage onto MiniDV tapes.

* Unit is V-Lock Battery or 4-Pin Power ONLY. Batteries and 4-Pin Power NOT INCLUDED *

Suggested Accessories:
- BLUESHAPE V-Lock Kit (or) Rolux V-Lock - 135wh Kit (or) Rolux V-Lock - 98wh Kit


GENERAL Power requirements: DC 12 V
Dimensions 211: (W) x 149 (H) x 443 (D) mm (8 3/8 x 5 7/8 x 17 1/2 inches)
Mass: 5.5 kg (12 lb 2 oz)

INPUT SIGNALS
VIDEO (ANALOGUE)
- Ref. Video (BNC x2, loop-through connection) Composite, 1.0 Vp-p, 75 Ω, sync negative
- Video (BNC x2, loop-through connection) Composite, 1.0 Vp-p, 75 Ω, sync negative
- S-Video (DIN 4-pin x1)
        Y: 1.0 Vp-p, 75 Ω, sync negative
        C: 0.3 Vp-p, 75 Ω (at burst level)

AUDIO (ANALOGUE)
- Audio (CH-1,2) XLR 3-pin female x2

OUTPUT SIGNALS
VIDEO (ANALOGUE)
- Ref. Video (BNC x1) 0.3 Vp-p, 75 Ω, sync negative
- Video 1/2 (SUPER) (BNC x2) Composite, 1.0 Vp-p, 75 Ω, sync negative

AUDIO (ANALOGUE)
- Audio (CH-1/3, 2/4) XLR 3-pin male x2
- Audio monitor (R/L) RCA phono jack x1
- Headphones JM-60 stereo phone jack x1

 Open PDF in new tab

Package includes:

1x Sony DSR-70

Rates:

Per day: $30
Per week: $120
